IntegraPose: User Guide

IntegraPose: Simultaneous Pose & Behavior Classification

Welcome to IntegraPose! This guide provides an interactive walkthrough of the powerful tool designed to streamline animal behavior analysis using deep learning. The goal is to overcome the challenges of fragmented workflows by unifying pose estimation and behavioral classification.

The IntegraPose Workflow at a Glance

The entire analysis process is a structured pipeline, moving from raw video to quantitative insights. Each stage builds upon the last. Hover over a node below to see its role.

📝

1. Annotate Data

→

🧠

2. Train Model

→

🏃

3. Run Inference

→

📈

4. Analyze & Visualize

Hover over a step above to see its description.

Beyond Keypoints: From Tracking to Discovery

A common challenge in behavioral research is knowing what to do after getting keypoint tracking data. Whether from SLEAP, DeepLabCut, or IntegraPose itself, you have thousands of coordinates, but the path to answering scientific questions isn't always clear. This section outlines the types of post-hoc analyses IntegraPose is designed to facilitate, turning your raw data into testable hypotheses.

1. Foundational & Comparative Analysis

This is the first step after tracking. It involves extracting fundamental kinematic variables (like speed, posture, and gait metrics) and then comparing these metrics between your experimental groups.

Validation: Are the calculated speed and posture metrics within an expected range for the animal model? This confirms data quality.
Locomotor Hypotheses: Do mice from one group exhibit a significantly different stride length or speed compared to another group during walking?
Coordination Hypotheses: Is the step width or the coordination pattern (stance phase percentage) different between the two groups?

2. Kinematic Signature Analysis

This analysis goes deeper by asking *how* two groups perform the *same* behavior differently. Instead of just knowing an animal is "walking," you can quantify the unique postural or dynamic signature of that walk.

Qualitative Differences: When both groups are rearing, is the average body elongation significantly different between them, suggesting a different posture?
Motor Deficits: Does one group of mice exhibit a lower average turning speed during a specific exploratory behavior, suggesting a difference in motor control?

3. Behavioral Transition & Preparatory Posture Analysis

Behavior is not static. This analysis focuses on the brief, information-rich windows of time immediately *before* and *after* an animal switches from one behavior to another.

Motor Planning: Do animals consistently slow down or adopt a specific posture in the 30 frames *before* initiating a grooming bout? Is this preparatory pattern different between groups?
Transition Mechanics: Is the change in body speed more abrupt (a steeper slope) for one group when transitioning from "Walking" to "Wall-Rearing"?

4. Causal Network Analysis

This advanced analysis moves beyond correlation to infer causation. Using methods like Convergent Cross-Mapping (CCM), it tests for causal relationships between pairs of dynamic variables to build a network of influence.

Balance Control: Does tail base speed *causally influence* turning speed, or are they just correlated? Is this causal link stronger in one group?
Gait Coordination: Is there a stronger causal link from hindlimb speed to overall body speed in one group, suggesting a different primary source of propulsion?

Installation Guide

Follow these steps to set up the IntegraPose environment. Using Conda is highly recommended.

Installation Steps

1

Prerequisites

Ensure you have Anaconda/Miniconda and Git installed. An NVIDIA GPU with CUDA is highly recommended for performance.
2

Clone the Repository

Open a terminal and run the following commands:

git clone https://github.com/farhanaugustine/IntegraPose.git

cd IntegraPose
3

Create & Activate Conda Environment

Use the provided file to create an environment with all dependencies. The file is configured for CUDA 12.4 by default. For CPU-only, you must edit the environment.yml file first.

# This creates the 'IntegraPose' environment

conda env create -f environment.yml

# Activate the new environment

conda activate IntegraPose
4

Launch the Application

Once the environment is active, you can start the GUI.

python main_gui_app.py

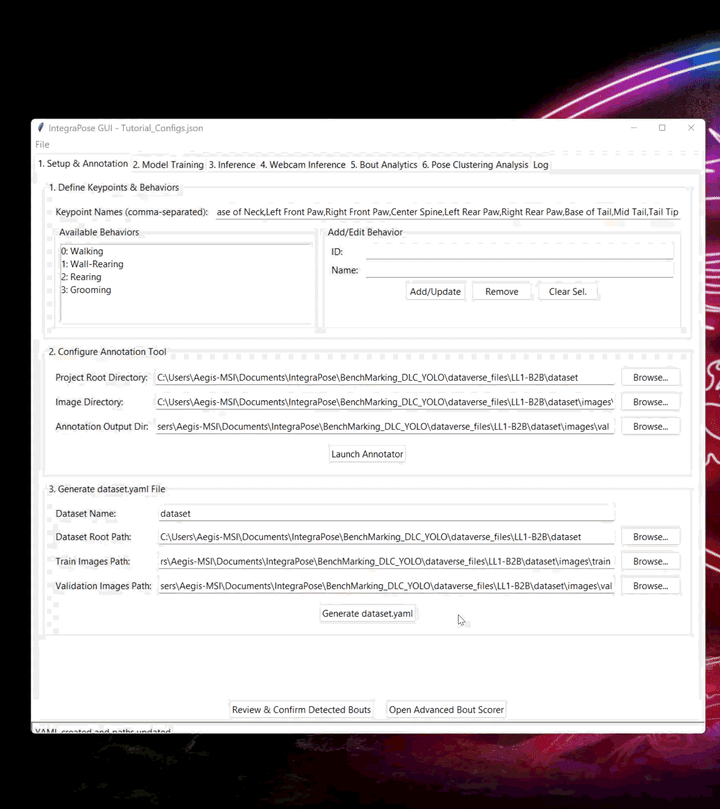

Getting Started: Data Preparation

Correct data preparation is the most critical step for successful model training.

A. Extract Frames from Videos

You must convert your videos into individual image frames. You can use the command-line tool FFmpeg or the Frame Extractor graphical tool.

Option 1: FFmpeg (Command Line)

This command extracts high-quality PNG frames.

ffmpeg -i video.mp4 -q:v 2 frames/frame_%05d.png

Option 2: Using Frame Extractor (GUI)

For a user-friendly alternative, use the included Python-based tool. Launch it from your terminal (with the Conda environment activated) by running:

python main.py

The tool offers three extraction modes:

Interactive Mode: Manually browse through the video and save frames of interest. This is ideal for selecting very specific moments.
Controls:
- D / A: Play forward / reverse.
- E / Q: Step one frame forward / backward.
- Spacebar: Pause playback.
- S: Save the current frame.
- T: Toggle on-screen info text.
- Mouse Wheel: Zoom in/out.
- Middle Click: Reset zoom.
- ESC: Quit.
Stride Sampling: Extracts a set number of frames by taking continuous "strides" (e.g., 10 frames in a row) from random starting points in the video. Useful for capturing short behavioral sequences.
Random Sampling: Extracts a specified total number of unique frames, chosen completely at random from the entire video. Good for creating a diverse, unbiased dataset.

B. Required Directory Structure

IntegraPose expects this structure inside your project root directory. The annotator will generate labels for you, but you must provide the correct path using the "Browse" buttons from the GUI. The splitter script (detailed below) can also create this structure automatically.

📁 <Project Root>/

📁 images/

📁 train/ (...png)

📁 val/ (...png)

📁 labels/

📁 train/ (...txt)

📁 val/ (...txt)

C. Split Data into Train/Val Sets (Optional Script)

After extracting your frames into a single folder, you need to split them into `training` and `validation` sets. An included command-line script can automate this process, ensuring a balanced (stratified) split of behaviors across both sets.

Standard Splitting Mode

This command will take all images and labels from a source directory and split them into `train` and `val` subdirectories inside your output project folder, according to the required structure.

# Example for an 80/20 split:
python split_data.py ^
  --source_images_dir "path/to/all_frames" ^
  --source_labels_dir "path/to/all_labels" ^
  --output_base_dir "path/to/YourProject" ^
  --val_split_ratio 0.2

Advanced: Extraction Mode

The script can also create a new, smaller dataset containing only images where specific classes (behaviors) appear. This is useful for targeted analysis or improving model performance on rare behaviors. Use the `--extract_classes` flag and provide the class IDs you want to isolate.

# Example to extract only frames with class 0 and 2:
python split_data.py ^
  --source_images_dir "path/to/all_frames" ^
  --source_labels_dir "path/to/all_labels" ^
  --output_base_dir "path/to/Extracted_Data" ^
  --extract_classes 0 2

GUI Walkthrough

This section details each tab in the IntegraPose application. Click on a tab name to expand its details.

Post-process the raw text outputs from the inference step to identify and quantify meaningful behavioral bouts.

📌 Pro Tip for Multiple Videos

If you run inference on multiple videos, YOLO will save all result .txt files into a single labels folder. This can make it hard to analyze one video at a time. A utility script is provided to help organize these files.

The Label_Organizer.py script will automatically sort your .txt files into subfolders named after each source video.

How to use:

Place the script in the same directory as your main labels folder (e.g., in your YOLOv8 runs/pose/predict/ folder).
Run it from your terminal:

python Label_Organizer.py

This creates a new organized_labels folder. Inside, you will find a subfolder for each video, containing only the relevant .txt files. You can then point the Bout Analytics tools to one of these specific subfolders.

ROI Management: Draw, name, and manage polygonal Regions of Interest (ROIs) to restrict analysis to specific zones (e.g., an arena corner).
Analysis Parameters: Define what constitutes a "bout" by setting the max frame gap allowed within a single bout and the minimum duration a bout must last to be counted. Set the video FPS for accurate time calculations.
Process Bouts: Run the analysis to generate a detailed table of all detected behavioral bouts, including animal ID, behavior, start/end frames, and duration.
Advanced Tools: Double-click any bout in the results table to open the Advanced Bout Scorer for fine-grained verification and correction. A separate Bout Confirmation Tool allows for rapid review of all detected bouts.

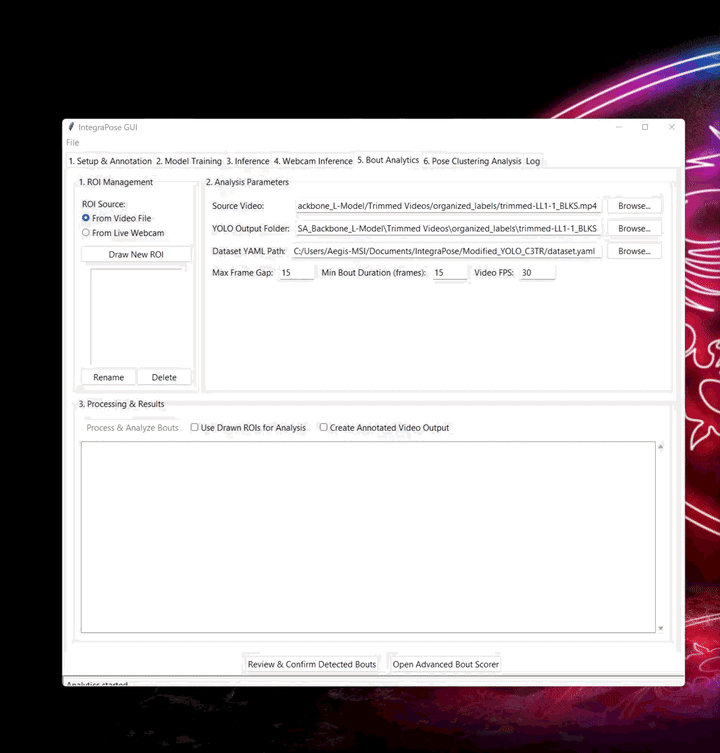

GIF demonstrating drawing ROIs on videos

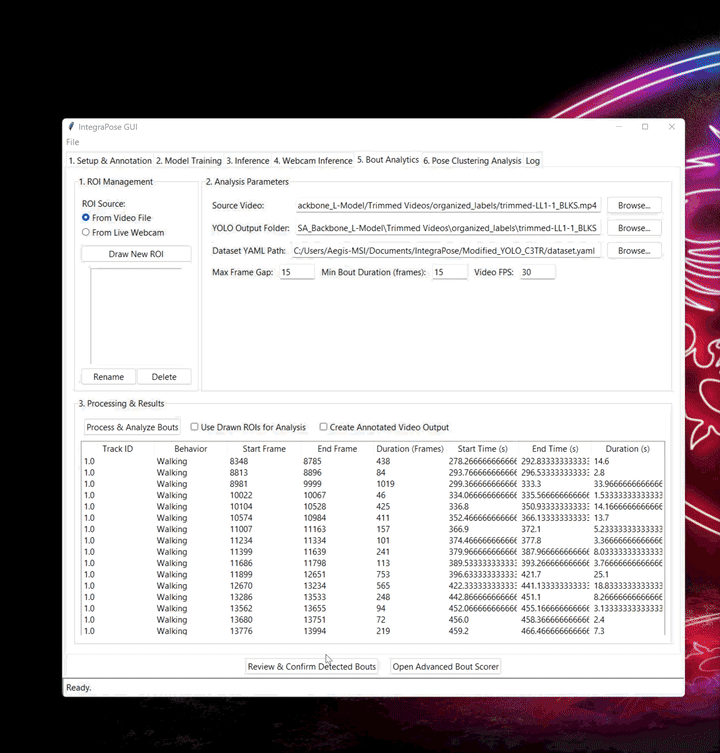

GIF demonstrating reviewing and confirming bouts

Advanced: Customizing the YOLO Model

While default models work well, you can achieve superior performance by customizing the model architecture for your specific needs. This involves editing the model's .yaml file to swap or add different neural network modules.

Model Anatomy: An Intuition

A YOLO model has three main parts. Understanding their roles helps you decide where to make changes.

🧠 Backbone: The "Visual Nervous System." It processes the input image and extracts raw visual cues like textures, edges, and color gradients. This is where the model learns to "see" basic features like fur, limbs, and tails.
🔗 Neck: The "Integration Hub." It takes feature maps from different stages of the backbone and fuses them. This allows the model to connect high-level context (like the overall posture of an animal) with low-level details (like the exact position of its whiskers).
🎯 Head: The "Decision Center." It takes the fused features from the neck and makes the final predictions: the bounding boxes, the behavior class, and the pose keypoints.

Module Cheat Sheet for Behavior Analysis

Here are some key modules you can use in your YAML file and their specific benefits for animal behavior research.

Backbone Modules (Feature Extraction)

Module	Use Case in Animal Behavior Recognition
C2 / C2f	A great balance of speed and accuracy. C2f is faster and more memory-efficient, making it ideal for real-time, closed-loop experiments.
C3 / C3x	Has more capacity to capture subtle cues like ear flicks or limb dynamics. C3x improves the receptive field, helping with partial occlusion (e.g., animal in bedding).
SPP / SPPF	Spatial Pyramid Pooling enables multi-scale feature detection. Essential for recognizing both tiny features (whiskers, paws) and the full body posture in the same frame.
GhostConv / GhostBottleneck	Creates "cheap" features with less computation. Perfect for lightweight models on edge devices like a Jetson Nano or Raspberry Pi mounted on a behavioral rig.
C2PSA / C3TR	Adds attention/transformer layers. C2PSA focuses computation on behaviorally relevant regions (e.g., snout during sniffing), while C3TR adds global context to better understand social interactions.

Neck Modules (Feature Fusion)

Module	Use Case in Animal Behavior Recognition
C2f	The default neck module in YOLOv8. It's an efficient and powerful workhorse for fusing multi-scale features.
ELAN / RepNCSPELAN4	These advanced multi-branch fusion modules are excellent at handling visual noise and clutter, such as cage enrichment, bedding material, or complex outdoor scenes.
Concat / Upsample	The fundamental wiring blocks for building a PAN (Path Aggregation Network) neck. They merge feature maps from different scales, crucial for tracking small body parts across frames.

Putting It Together: Example YAML

Below is a sample YAML file showing how to construct a model. To use a custom model, you will need to use Command Line Interface to construct your custom model and train it. Instructions are in subsequent sections.

# =======================================================================================
# IntegraPose-YOLO Examples
# =======================================================================================

# Parameters
nc: 4 # Number of BEHAVIOR classes
kpt_shape: [12, 3] # 12 keypoints, 3 dimensions (x, y, visibility)
scales:
 # [depth, width, max_channels]
  l: [1.00, 1.00, 512]
  x: [1.00, 1.50, 512]
  s: [0.50, 0.50, 1024]
  m: [0.67, 0.75, 768]
  n: [0.50, 0.25, 1024]

# ---------------------------------------------------------------------------------------
# BACKBONE EXAMPLE 1: A custom backbone with attention (C2PSA) and a transformer (C3TR)
# for recognizing complex social interactions.
# ---------------------------------------------------------------------------------------
# backbone:
   # [from, repeats, module, args]
   - [-1, 1, Conv, [80, 3, 2]]      # 0-P1/2
   - [-1, 1, Conv, [160, 3, 2]]     # 1-P2/4
   - [-1, 3, C3k2, [160, True]]     # 2
   - [-1, 1, Conv, [320, 3, 2]]     # 3-P3/8
   - [-1, 6, C3k2, [320, True]]     # 4
   - [-1, 1, Conv, [640, 3, 2]]     # 5-P4/16
   - [-1, 6, C3k2, [640, True]]     # 6
   - [-1, 1, C2PSA, [640]]          # 7 - Attention block
   - [-1, 1, Conv, [960, 3, 2]]     # 8-P5/32
   - [-1, 1, SPPF, [960, 5]]        # 9 - Multi-scale pooling
   - [-1, 3, C3TR, [960]]           # 10 - Transformer block

# ---------------------------------------------------------------------------------------
# BACKBONE EXAMPLE 2: A different custom backbone using A2C2f and C2PSA blocks.
# This structure is currently active in this file.
# ---------------------------------------------------------------------------------------
backbone:
 # [depth, width, max_channels]
  - [-1, 1, Conv, [64, 3, 2]]         # 0-P1/2
  - [-1, 1, Conv, [128, 3, 2]]        # 1-P2/4
  - [-1, 2, C3k2, [320, True, 0.25]]
  - [-1, 1, Conv, [256, 3, 2]]        # 3-P3/8
  - [-1, 2, C3k2, [512, True, 0.25]]
  - [-1, 1, Conv, [512, 3, 2]]        # 5-P4/16
  - [-1, 4, A2C2f, [640, True, 4]]
  - [-1, 1, Conv, [1024, 3, 2]]       # 7-P5/32
  - [-1, 4, A2C2f, [1024, True, 1]]   # 8
  - [-1, 2, C3k2, [512, True, 0.25]]  # 9
  - [-1, 1, C2PSA, [640]]             # 10 - Attention block

# ---------------------------------------------------------------------------------------
# HEAD: Fuses features and makes final predictions
# ---------------------------------------------------------------------------------------
head:
  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 6], 1, Concat, [1]]  # cat backbone P4
  - [-1, 2, A2C2f, [512, False, -1]]

  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 4], 1, Concat, [1]]  # cat backbone P3
  - [-1, 2, A2C2f, [256, False, -1]]

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 11], 1, Concat, [1]] # cat head P4
  - [-1, 2, A2C2f, [512, False, -1]]

  - [-1, 1, Conv, [512, 3, 2]]
  - [[-1, 8], 1, Concat, [1]]   # cat head P5
  - [-1, 2, C3k2, [1024, True]]

  - [[16, 19, 22], 1, Pose, [nc, kpt_shape]] # Pose head predicting on P3, P4, P5

Training a Custom Model via Command Line

Once you have created your custom .yaml file, you must train it using the Command Line Interface (CLI). The GUI's training tab is designed for standard, pre-packaged models. The CLI provides the necessary flexibility to specify your custom architecture and training parameters.

Key Training Arguments ⚙️

Argument	Description (from Ultralytics Docs)
model	Path to your custom `.yaml` file or a `.pt` model to fine-tune.
data	Path to your dataset configuration file (e.g., `dataset.yaml`).
epochs	Total number of training epochs (full passes over the dataset).
patience	Number of epochs to wait for improvement before early stopping to prevent overfitting.
batch	Number of images to process at once. Set to `-1` for auto-batch size to maximize GPU memory usage.
imgsz	Target image size for training (e.g., 640). All images are resized to this dimension.
cache	Set to `ram` or `disk` to cache the dataset and speed up training.
project / name	Sets the project and run names for saving results to an organized directory.
device	Specifies the device: e.g., `0` for the first GPU, or `cpu` for the CPU.

Putting It All Together: An Example 💻

Here is a complete example of a command you would run in your terminal. Remember to replace the placeholder paths with your actual file paths.


# First, activate the correct environment in your terminal
conda activate IntegraPose

# Now, run the training command with your desired settings as a single command line.
yolo pose train ^
  model="path/to/your/custom_model.yaml" ^
  data="path/to/your/dataset.yaml" ^      # This file can be generated after data annotation from GUI "Tab 1: Setup & Annotation"
  epochs=200 ^                            # Change to match you desired number of epochs
  patience=75 ^                           # Early stopping, will terminate training if learning doesn't improve for this many epochs
  batch=-1 ^                              # -1 sets to auto (~60% GPU). Number defines how many images are shown to the model at once
  imgsz=640 ^                             # Image is compressed to this size for model training and inference
  project="IntegraPose_Custom_Runs" ^     # Assigns the project save directory path
  name="AttentionModel_v1_Run" ^          # Name of your experiment, if needed
  cache=disk ^                            # Caches the dataset images on disk. Better for reproducible training outcomes
  device=0                                # GPU (device=0), or CPU (device=cpu)

  Putting it all together in CLI: yolo pose train model="custom.yaml" data="data.yaml" ... device=0

Troubleshooting

Encountering an issue? Check these common errors and use the Log tab for clues.

Common Errors & Solutions

AttributeError / "Could not find setting...": Usually means a configuration is missing. Ensure all path fields in the relevant tab are filled out correctly.
"Failed to load image..." (in Annotator): Double-check that the "Image Directory" path in Tab 1 is correct and contains valid image files (.png, .jpg).
"No valid .txt files found..." (in Analytics): Make sure you ran inference (Tab 3) with the "Save Results (.txt)" checkbox enabled. Verify the "YOLO Output Folder" in Tab 5 points to the correct .../labels directory.
GUI Freeze/Crash: Check the Log Tab immediately. It captures all command-line outputs and error messages from the underlying processes, which are your best source for debugging information.
